Salt Spray and Cyclic Corrosion Test Chamber Manufacturers in Delhi

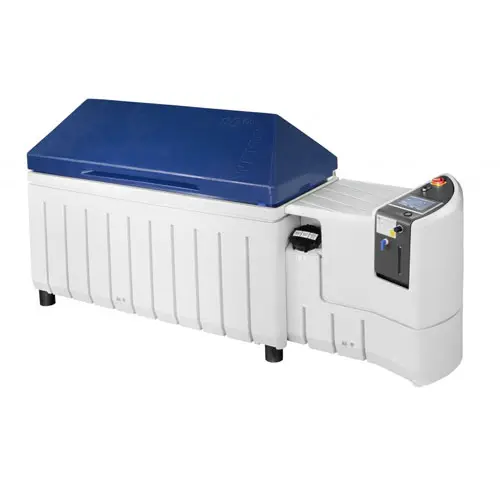

ssc-fully-automatic

SSC Fully Automatic

Metkorp Equipments Pvt. Ltd is a Leading Salt Spray and Cyclic Corrosion Test Chamber manufacturing company in Delhi. We offering Salt Spray and Cyclic Corrosion Test Chamber at Best Price in Delhi. The offered Salt Spray and Cyclic Corrosion Test Chamber in Delhi is valued by our patrons for their quality. The complete range of Salt Spray and Cyclic Corrosion Test Chamber is having export quality supplying in Delhi which is manufactured by using modern techniques under the observation of skilled professionals. The offered Salt Spray and Cyclic Corrosion Test Chamber in Delhi, is checked on various parameters by our quality controllers.

Salt Spray and Cyclic Corrosion Test Chamber Manufacturers, Supplier in Delhi, Salt Spray and Cyclic Corrosion Test Chamber in Delhi, Salt Spray and Cyclic Corrosion Test Chamber at best price in Delhi.
• HMI based Touch screen (Delta Make)
• Inbuilt temperature settings.
• Salt Spray Test mode enables to set parameters according to test sample.
• Temperature setting and preset Timer functions incorporated in HMI for accuracy and repeatability.
• Corrosion Resistant PT-100 Sensor (SS 316 Make).
• Solid state digital Programmable Temperature Controller.
• Program profile for selecting test parameters and programming the test.
• Current test running status display.
• Robust Construction with fiber reinforced body.
• Ease of use of sample placement inside the test chamber,
• Air purge after test for fog settlement.
• Reservoir Tank inside sponge filter provided.
• Auto Tuning feature selection.
• Run time vs temperature graph.
• Data save to USB drive,
• Angle of Canopy maintained in order to restrict flow of droplets directly on the test sample.
• Air saturated water low level and high temperature alarm.
• NACL Solution level indicator.
• DTC 1000 For RTD
• HMI-PLC Cable (Make Honeywell)
• Relay Card 4 Channel (Delta Make)
• 10 Amp DP MCB (LNT Make)
• Related Standard: ASTM B 117 and JIS Z 2371

TECHINICAL SPECIFICATIONS:-

Display

HMI Based touch screen 7inch TFT LCD Colour Screen

Chamber Temperature Range

Ambient to 40˚C

Test Temperature Range

35˚C ± 2˚C

Chamber Temperature Least Count

0.1˚C

Chamber Temperature Repeatability

± 2˚C

Air Saturated Temperature Range

40˚C - 49˚C

Air Saturated Temperature Least Count

0.1˚C

Air Saturated Temperature Repeatability

± 2˚C

Power

220V, Ac, Single Phase, 50 Hz, 15 A

pH value of Salt Solution

6.5 to 7.2

OPTIONAL ACCESSORIES:-
Pneumatically operated canopy**

HMI TOUCHSCREEN SPECIFICATION:-
• 7" (800 X 480 pixels) TFT LCD 65536 colors.
• 3 sets of COM ports, support RS232 / RS422 / RS485
• For data transfer/download: RS232, USB
• Supports USB Host, direct connection to USB disk, printer and mouse.
• Touch screen complies with IP65
• Supports horizontal / vertical display.
• PC editing software, DOPSoft is compatible with operation system:
• Window XP, Window Vista, Window 7
